Here’s how you can configure HTTP Request Action in various use-cases.
# ---------------------------------------------------------------------------
# EXAMPLES — how to configure action.http.request in Studio workflows
# ---------------------------------------------------------------------------
#
# All field values support {{variable}} syntax. Variables are resolved before
# execution, so the final request uses real data from the trigger or earlier steps.
#
#
# ═══════════════════════════════════════════════════════════════════════════
# 1. HEADERS
# ═══════════════════════════════════════════════════════════════════════════
#
# Headers are key-value pairs. Values can be static or dynamic.
#
# Static:
# Key: Content-Type Value: application/json
# Key: X-Custom-Source Value: actor-studio
#
# Dynamic (using trigger/step variables):
# Key: Authorization Value: Bearer {{steps.step_1.output.token}}
# Key: X-Sender-Email Value: {{trigger.email.sender_email}}
# Key: X-Event-Id Value: {{trigger.event.event_id}}
#
# Mixed:
# Key: X-Request-Tag Value: email-from-{{trigger.email.sender_email}}
#
#
# ═══════════════════════════════════════════════════════════════════════════
# 2. QUERY PARAMETERS
# ═══════════════════════════════════════════════════════════════════════════
#
# Query params are appended to the URL as ?key=value&key2=value2.
#
# Static — notify a Slack-style webhook with a fixed channel:
# URL: https://hooks.example.com/notify
# Params:
# Key: channel Value: #alerts
# Key: priority Value: high
#
# Dynamic — pass email metadata to a CRM lookup endpoint:
# URL: https://crm.example.com/api/contacts/search
# Params:
# Key: email Value: {{trigger.email.sender_email}}
# Key: subject Value: {{trigger.email.subject}}
#
# Dynamic — filter calendar events by date from an earlier step:
# URL: https://api.example.com/schedule
# Params:
# Key: date Value: {{trigger.event.start}}
# Key: organizer Value: {{trigger.event.organizer}}
# Key: limit Value: 10
#
#
# ═══════════════════════════════════════════════════════════════════════════
# 3. REQUEST BODY — JSON (body_type = "json")
# ═══════════════════════════════════════════════════════════════════════════
#
# The body field accepts raw JSON. Embed {{variables}} anywhere in values.
#
# Example A — forward email data to a webhook:
# {
# "event": "new_email",
# "from": "{{trigger.email.sender_email}}",
# "subject": "{{trigger.email.subject}}",
# "snippet": "{{trigger.email.snippet}}",
# "received_at": "{{trigger.email.date}}"
# }
#
# Example B — create a ticket in a project management tool:
# {
# "project": "support",
# "title": "Follow up: {{trigger.email.subject}}",
# "description": "Email from {{trigger.email.sender}} on {{trigger.email.date}}.\n\n{{trigger.email.body_text}}",
# "priority": "normal",
# "tags": ["email", "auto"]
# }
#
# Example C — use output from a previous Find Emails step:
# {
# "summary_request": true,
# "email_count": "{{steps.step_1.output.count}}",
# "emails": "{{steps.step_1.output.items}}"
# }
#
# Example D — send calendar event to a scheduling API:
# {
# "meeting_title": "{{trigger.event.title}}",
# "attendees": "{{trigger.event.attendees}}",
# "start": "{{trigger.event.start}}",
# "end": "{{trigger.event.end}}",
# "video_link": "{{trigger.event.video_link}}",
# "notes": "Auto-logged from Actor Studio"
# }
#
# Example E — chain digest output into an external notification:
# {
# "channel": "#daily-digest",
# "text": "{{steps.step_2.output.digest_text}}",
# "html": "{{steps.step_2.output.digest_html}}"
# }
#
#
# ═══════════════════════════════════════════════════════════════════════════
# 4. REQUEST BODY — FORM DATA (body_type = "form")
# ═══════════════════════════════════════════════════════════════════════════
#
# Form data can be entered as JSON or as key=value lines (one per line).
#
# As JSON:
# {
# "name": "{{trigger.email.sender}}",
# "email": "{{trigger.email.sender_email}}",
# "message": "{{trigger.email.body_text}}",
# "source": "actor-studio"
# }
#
# As key=value lines:
# name={{trigger.email.sender}}
# email={{trigger.email.sender_email}}
# message={{trigger.email.body_text}}
# source=actor-studio
#
#
# ═══════════════════════════════════════════════════════════════════════════
# 5. FULL WORKFLOW EXAMPLES
# ═══════════════════════════════════════════════════════════════════════════
#

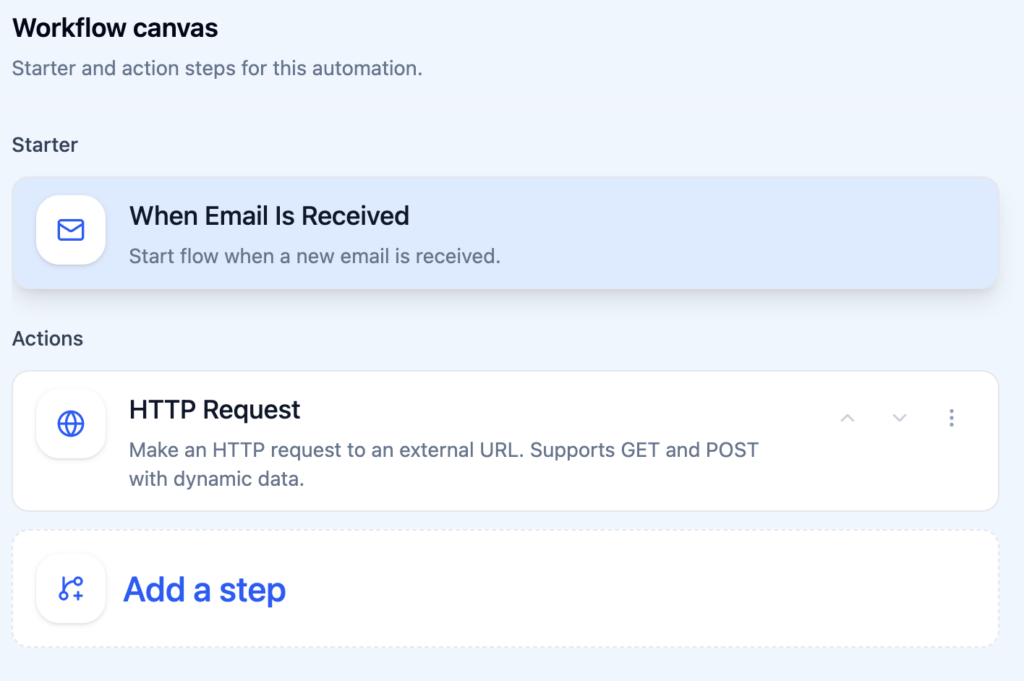

# --- Example: Notify Slack when an important email arrives ---
# Trigger: trigger.email.received (label = "Important")
# Step 1: action.http.request
# Method: POST
# URL: https://hooks.slack.com/services/T.../B.../xxx
# Body type: json
# Body:
# {
# "text": "New email from {{trigger.email.sender}}: {{trigger.email.subject}}"
# }
#
# --- Example: Log new bookings to Google Sheets via Apps Script ---
# Trigger: trigger.booking.created
# Step 1: action.http.request
# Method: POST
# URL: https://script.google.com/macros/s/.../exec
# Headers:
# Key: Content-Type Value: application/json
# Body type: json
# Body:
# {
# "guest": "{{trigger.booking.guest_name}}",
# "email": "{{trigger.booking.guest_email}}",
# "time": "{{trigger.booking.selected_time.start}}",
# "topic": "{{trigger.booking.selected_topic}}"
# }
#
# --- Example: GET request with dynamic query params ---
# Trigger: trigger.email.received
# Step 1: action.http.request
# Method: GET
# URL: https://api.clearbit.com/v2/people/find
# Headers:
# Key: Authorization Value: Bearer sk_xxx
# Query params:
# Key: email Value: {{trigger.email.sender_email}}
#
# --- Example: Daily digest → POST to custom dashboard ---
# Trigger: trigger.schedule.recurring (daily 08:00)
# Step 1: action.email.find (unread, limit 20)
# Step 2: action.digest.create (prompt: "Summarize {{steps.step_1.output.items}}")
# Step 3: action.http.request
# Method: POST
# URL: https://dashboard.example.com/api/digest
# Headers:
# Key: X-API-Key Value: my-secret-key
# Body type: json
# Body:
# {
# "date": "{{trigger.schedule.fired_at}}",
# "summary": "{{steps.step_2.output.digest_text}}",
# "email_count": "{{steps.step_1.output.count}}"
# }
#
